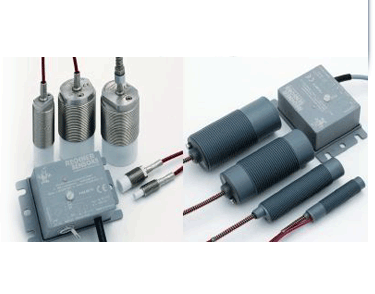

Rechner Sensors

Rechner sensor product categories:

Since the founding of Rechner in 1965, they have moved into a leading position worldwide through dedication, product innovation and top quality. This holds in particular for their special area of capacitive sensors, where they have played a major role in development and design. Many consider the name RECHNER as being synonymous with the capacitive sensor. This is a product that can be used in a great variety of settings and that is indispensable for today's automation technology. The broad range of sensors RECHNER offers is clearly a key element of their success. This range includes capacitive, inductive, Flow and magneto-resistive sensors. The product range is complemented by a selection of ATEX approved sensors, ancillary equipment and transistor-based signal amplifiers, control units and power supplies.

High Performance – The standard for Rechner’s capacitive sensors.
Capacitive Sensors:
  • Wide selection of body styles and materials such as FDA certified PTFE for the pharmaceutical and food industry, Stainless Steel, PA, and PEEK
  • Extreme long sensing ranges & high temperature types (800 °C)
  • The 26 series especially designed for level detection of sticky materials with G1”, M22 and Tri-Clamp process fitting options
  • 95 series,  20 to 250V AC/DC versions with built in switching relay and adjustable on/off time delay
  • Capacitive leak sensors. Leaks can be detected early and reliably. The LEAK sensor can be mounted directly on to the base of a basin or drip tray
  • Rechner capacitive sensors are also available with ATEX certification
 Capacitive
Level Probes:

  • Series: Limit Value Measurement with remote and built in amplifier options

    • Level probe up to 2 meters long,
    • up to 4 digital switching outputs in one single probe with remote amplifier. Up to 2 digital switching outputs in one single probe with built in amplifier.
    • Probe materials, GFK, FDA certified PTFE for the pharmaceutical and food industry, PVDF and PEEK
    • Working temperature up to 250 °C, (with remote amplifier), up to 100 °C, (with built in amplifier)
  • Series: Analogue Measurement
    • Level probe up to 2 meters long, 0 to 10V DC  and 4 to 20 ma outputs.
    • Probe materials, GFK, FDA certified PTFE for the pharmaceutical and food industry, PVDF and PEEK
    • Possible Process Connection,  G1” Triclamp variant. Milk-tube-screwing

Both digital limit output and analogue output versions are also available with ATEX certification.

 Level Probes
Flow Sensors:
  • Rechner flow sensors are based on the calorimetric measurement principal
  • Permanent display of flow as a percentage
  • Removable programming ring
  • Two programmable switching points along with analogue 4 to 20ma output
 Flow Sensors
Inductive Proximity Sensors:
  • Variety of body styles , short and long bodies,     tubular style
  • High temperature types (250 °C)
  • Inductive Namur sensors and ATEX certified versions
 Inductive Proximity Sensor
Magneto-Resistive Sensors:

They are suitable for rotary speed sensing, for detection of gearwheels and for standstill control. Areas of use can be extremely rough, maximum switching frequency of 15 kHz.

 Magneto-Resistive Sensors
Sensor Accessories
  • Plug/leads to suit all sensors.
  • Sensor mounting wells
  • Sensor holder for tube mounting
  • Ancillary equipment and transistor-based signal amplifiers, control units and power supplies. ATEX certified versions
 Sensor Accessories

Click here to visit the Rechner Sensors website for more detailed information on above products.

Our total focus is on providing our customers with the best quality sensor solution at a fair price.
