Products
Contrinex

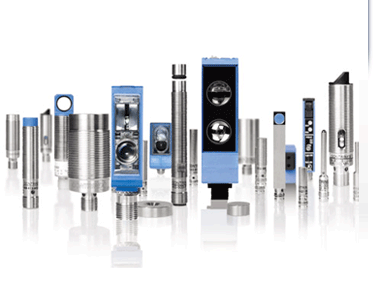

Contrinex is a leading manufacturer of inductive and photoelectric sensors. The Swiss company, with headquarters in Givisiez, has developed a unique range of products whose performance far exceeds that of standard devices. Since its foundation in 1972, Contrinex has grown from a one-man concern into a small multi-national Group employing over 500 people worldwide. However, it still concentrates exclusively on the development, manufacturing and sales of sensing equipment for industrial applications.

In particular, Contrinex has specialized in:

  • miniature devices
  • long operating distances
  • resistance to extreme environmental conditions
  • devices in all-metal housings

Contrinex sensor product catagories:

Photoelectric Sensors:
  • Diffuse , Diffuse with background suppression, Laser versions for pin point accuracy
  • Retro-reflective and Thru-beam styles ,laser versions for pin point accuracy.Long range versions
  • Plastic and Glass fibres, Amplifiers with Digital displays, with high resolution
  • Photoelectric sensors with analogue 0 to 10V or 4 to 20ma output
  • Fork Thru-beams with extra large fork widths
  • Frame sensors
 Photoelectric Sensors
Inductive Proximity Sensors:
  • Wide variety of body styles , short and long bodies, tubular , square and flat pack style
  • Housings as small as 3mm diameter
  • Extended sensing ranges versions
  • High temperature types (up to 230°C)
  • High pressure types up to 500Bar
  • Rugged one piece stainless steel Housing including sensing face. IP 68+IP69K
  • Weld field immune sensors
  • Precision analogue types for distance measurement with 0 to 10V or 4 to 20ma output
  • Inductive Namur sensors
  • Annular inductive sensors
 Inductive Proximity Sensors
Ultrasonic Sensors:
  • Proximity type, small housing styles
  • Thru-beam type for high speed counting of Clear glass or Pet bottles
  • Analogue output versions 0 to 10v or4 to 20ma for level measurement
  • Long sensing ranges
 Ultrasonic Sensors
Safety Light Curtains:
  • Finger Protection 14mm Safety Level Type 4 (EN/IEC 61496-1and -2) Category 4 (EN/ISO 13849-1)
  • Hand Protection 30mm Safety Level Type 4 (EN/IEC 61496-1and -2) Category 4 (EN/ISO 13849-1)
  • Safety relay safety category 4 according to EN 954-1
 Safety Light Curtains
Sensor Accessories:
  • Plug/leads to suit all sensors
  • Special high chemical resistive plug leads with IP68+IP69 high grade stainless steel connectors
  • Reflectors, Sensor mounting Clamps
  • Sensor Testers
  • Sensor distribution boxes
 Sensor Accessories

Click here to visit the Contrinex website for more detailed information on above products.

Our total focus is on providing our customers with the best quality sensor solution at a fair price.
